Architecture should compile
HexaGen Monaco makes architecture explicit, versionable, and enforceable at the build level.
Stop architectural drift before a single line of code is merged.
HexaGen Monaco makes architecture explicit, versionable, and enforceable at the build level.
Stop architectural drift before a single line of code is merged.
Architectural decay is invisible until it becomes expensive. By the time a team notices that business logic has leaked into components, or that two bounded contexts have merged informally through a shared utility, the refactor cost is enormous. React / Next.js monorepos degrade predictably through deep cross-feature coupling and boundary erosion — and the damage is done before anyone raises an alert.
HexaGen Monaco treats architecture as a first-class artifact. A single manifest.yaml encodes your system's topology — bounded contexts, ports, adapters, and layer rules — as executable data. Every commit runs yarn lint:arch. Every generated project ships with its own governance engine. Architectural decisions stop being documents that drift from reality and start being rules the build enforces.
Architecture should compile.
HexaGen Monaco doesn't just govern itself — it generates projects that govern themselves. Every scaffolded monorepo includes the full HexaGen CLI with yarn sync, yarn lint:arch, and --dry-run support baked in.
# 1. Download the generated project ZIP from the web UI
# 2. Extract and enter the directory
$ cd hexagen-project
# 3. Enable corepack and install dependencies
$ corepack enable && yarn install
# 4. Start development or build
$ yarn dev # Start all packages in dev mode
$ yarn build # Build all packages
# 5. Use the HexaGen CLI for architecture management
$ yarn sync # Generate artifacts
$ yarn sync:dry # Preview changes
$ yarn sync:force # Overwrite non-generated files
$ yarn lint:arch # Validate manifest against rules
$ yarn format # Format all TypeScript and Markdown files

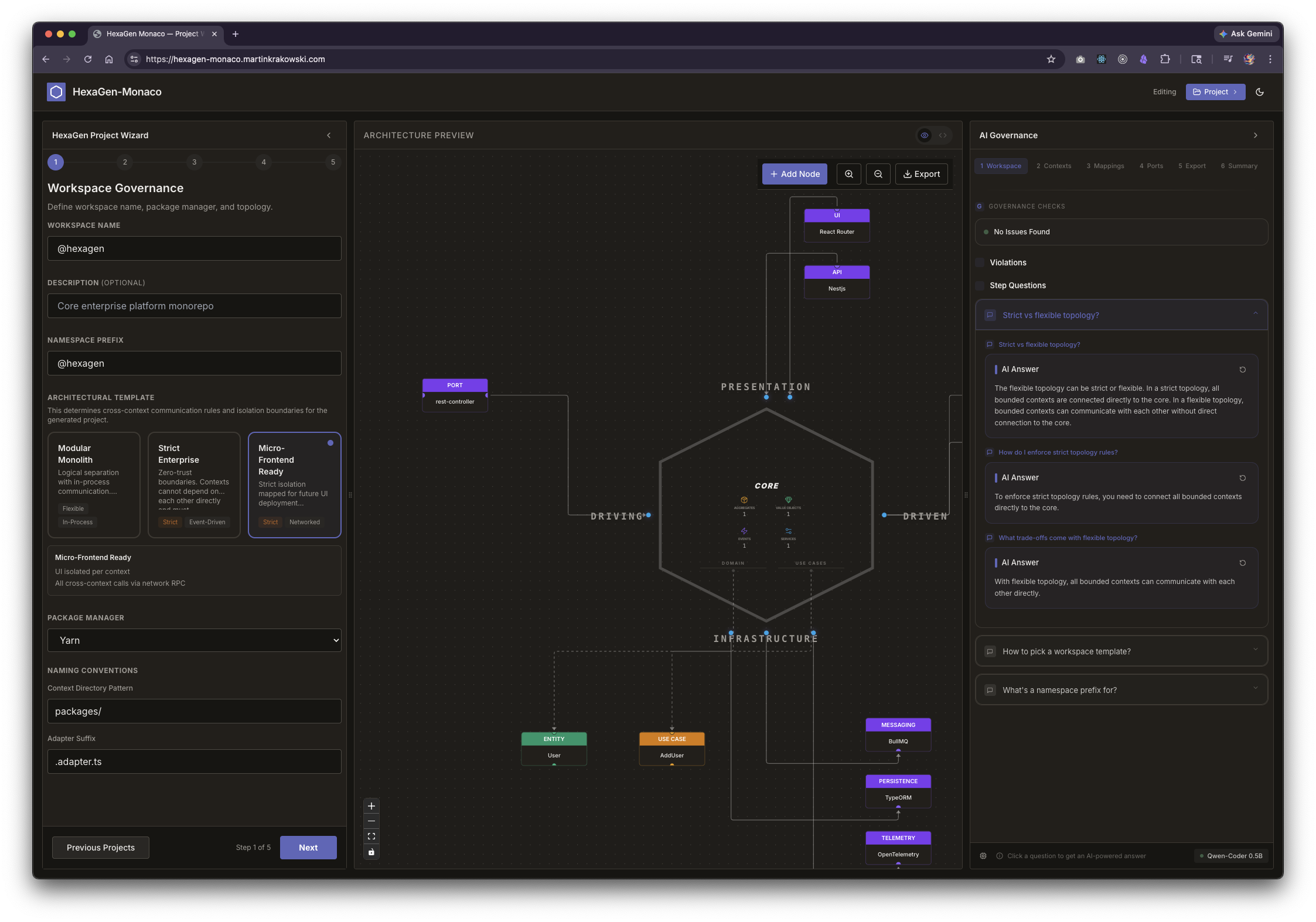

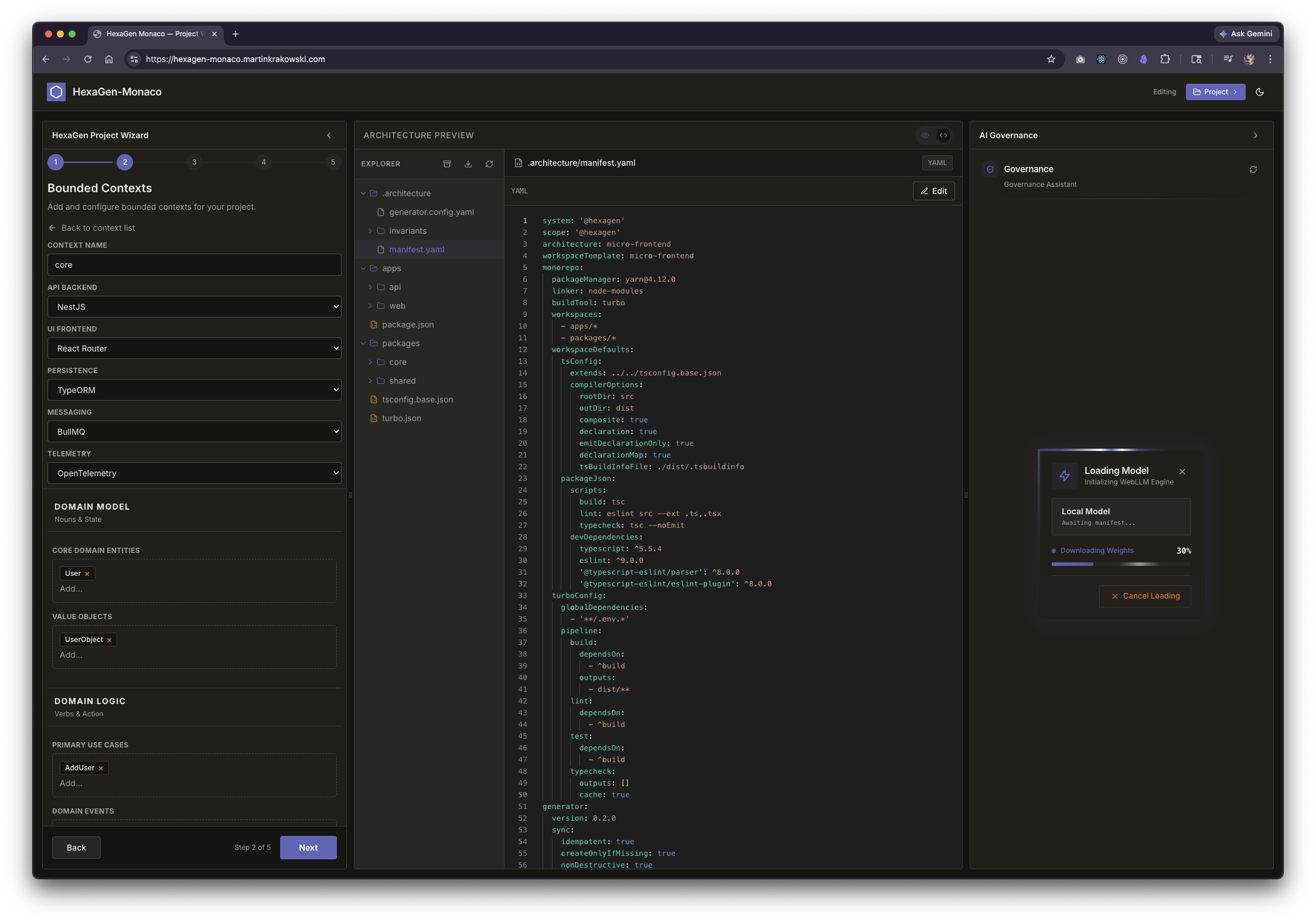

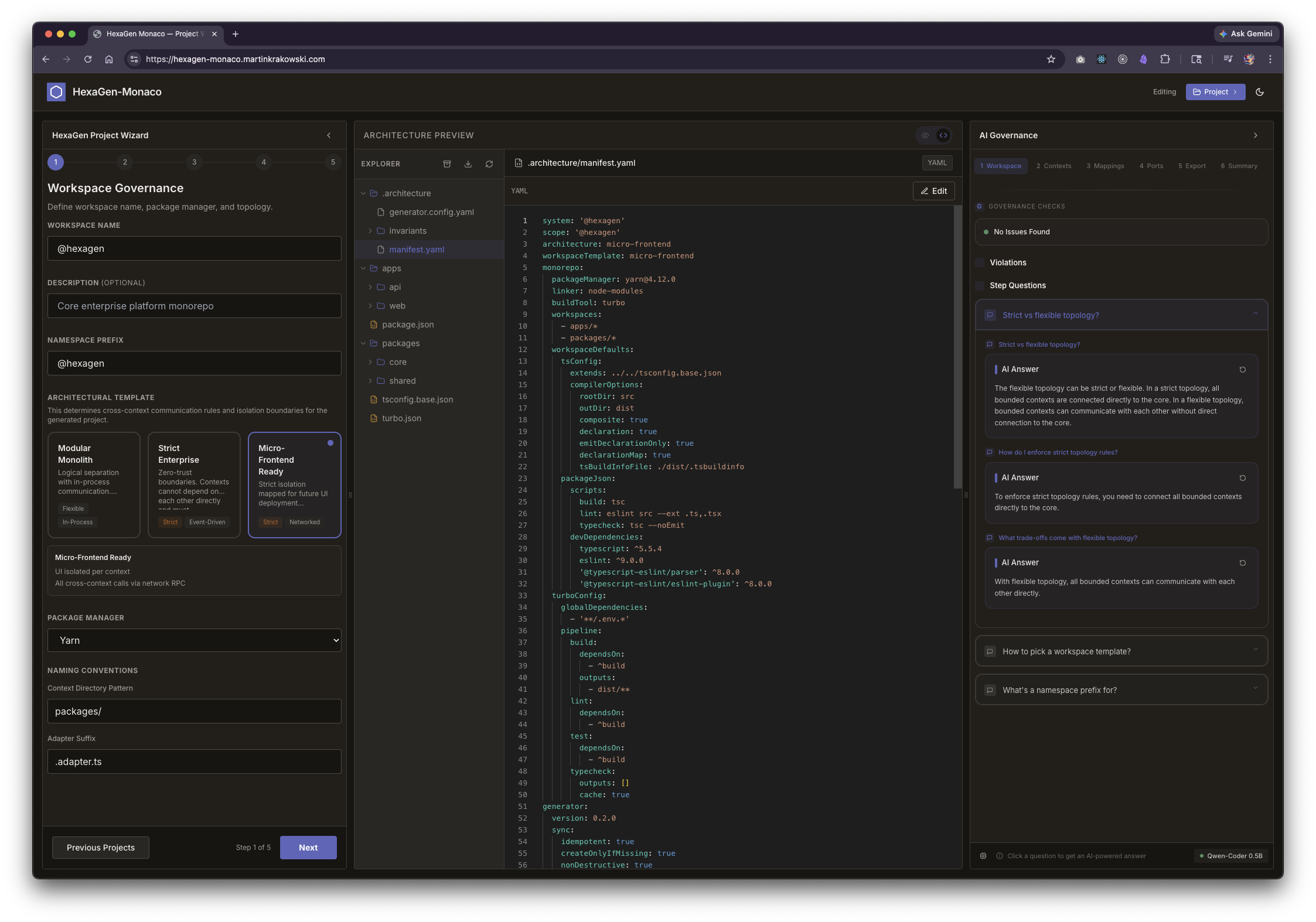

The web application provides a visual architecture canvas for navigating bounded contexts, ports, adapters, and dependency flows. Built with Next.js and React Flow, it renders the manifest as an interactive graph where each node maps to a named element in manifest.yaml.
HexaGen includes a full-featured terminal dashboard (apps/tui) built with Ink for navigating and governing architecture directly from the command line.

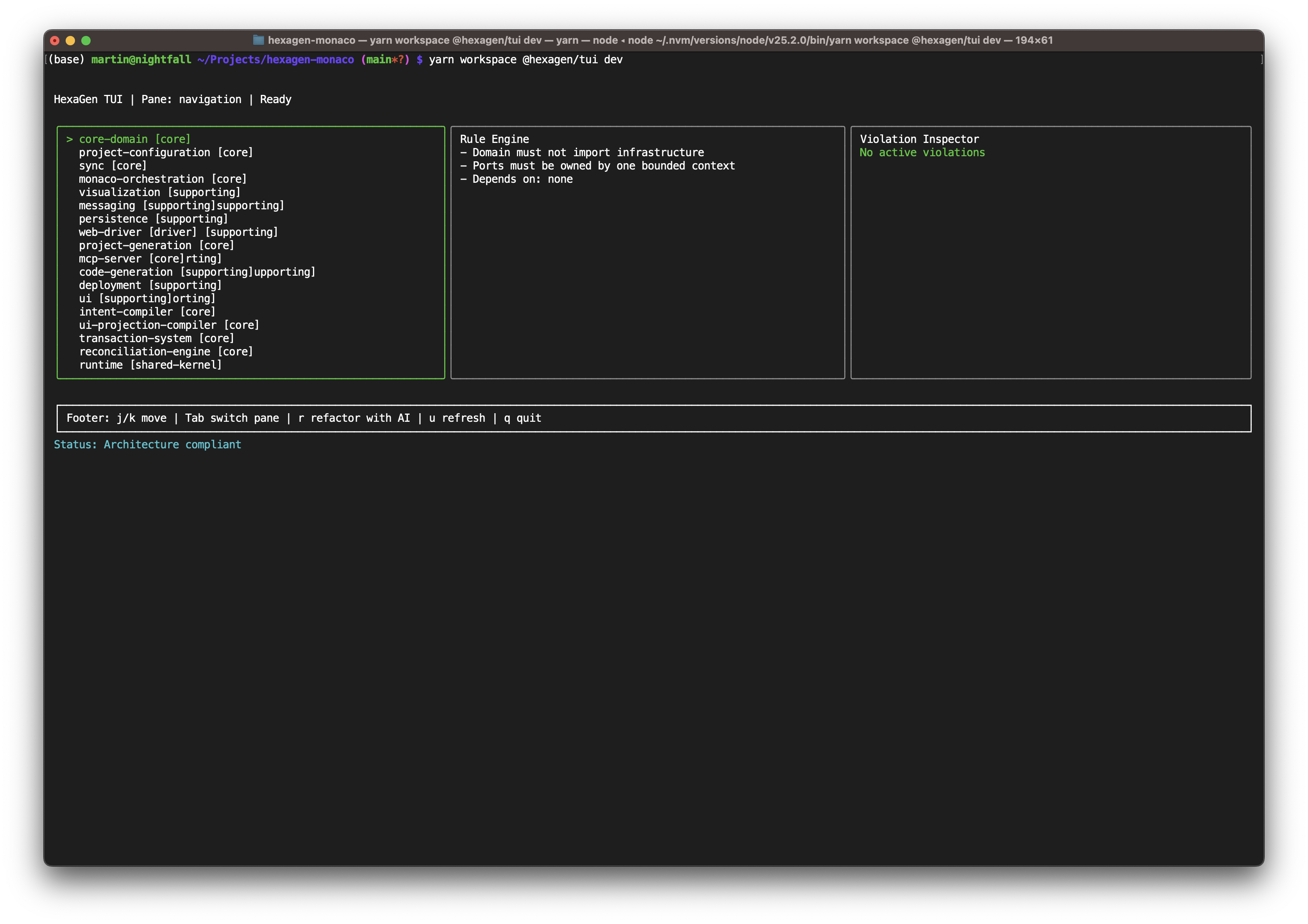

The TUI presents a three-pane layout: a navigation tree for module and port browsing, a rule engine panel that shows active invariants and layer constraints, and a violation inspector that surfaces boundary breaches with contextual refactoring suggestions. Filesystem watching keeps all three panes live — the dashboard updates when the manifest or dependency graph changes, without requiring a manual refresh.
AI-assisted refactoring is integrated through a local MCP server. When the linter detects a boundary violation, pressing r routes the context to the agent, which proposes a fix grounded in the manifest. The TUI is keyboard-driven throughout: j/k to navigate, Tab to switch panes, r to refactor with AI, u to refresh, q to quit.
# Start the TUI
$ yarn workspace @hexagen/tui dev
# Or after building
$ yarn workspace @hexagen/tui start
The LLM is not a first-class actor in this system — it is infrastructure, modeled behind a port. Every AI interaction flows through LLMProviderPort (defined in the agentic-interaction bounded context), making the inference layer swappable, testable, and incapable of leaking into domain logic.
This design has a concrete consequence: you can substitute OpenAI, Anthropic, a local WebLLM instance (via the local-llm plane), or a future provider without touching any domain code. Governance rules and prompt compilation live in prompt-compiler and governance — they consume the port interface, not a specific provider. The LLM is a detail of infrastructure, not a constraint on architecture.
For TUI integration, the mcp-server bounded context exposes architectural tools (audit, scaffold, diff, governance reads) over stdio transport, allowing AI agents — Claude Code, Copilot, or any MCP-compatible client — to interact with the manifest and enforcement layer programmatically.
HexaGen Monaco is a modular monolith composed of strictly isolated modules defined in .architecture/manifest.yaml.
| Module | Core Responsibility |
|---|---|
| Project Configuration | Governance Core; manifest parsing and system topology. |
| Code Generation | Manifest Compiler; generates hexagonal boilerplate and syncs workspaces. |
| Architectural Enforcement | Risk Mitigation; dependency linting and boundary validation. |
| Wizard Orchestration | Deterministic UI Engine; follows Intent > Use Case > Projection. |
| Monaco Orchestration | Semantic Editing; AST-based patching gated by confidence scoring. |
| Agentic Interaction | AI as Infrastructure; architectural assistant modeled behind ports. |
| Visualization | Interactive Graph; visualizes module-to-port-to-adapter mappings. |
| Persistence | Lifecycle Engine; tracks architectural evolution and version diffs. |
Routes every user interaction through an Intent > Use Case > Projection pipeline — enforcing a strict separation between what the user wants, what the system does, and what the UI renders. The intent layer is the only entry point; projections are pure.
Uses AST-based semantic patching (via ts-morph) with confidence scoring. Not all edits are treated equally — the system gates mutations based on structural certainty, enabling safe auto-refactor within the editor.
Treats AI as infrastructure behind a port, not as a first-class domain actor. This means the LLM is swappable and testable, and governance rules can never accidentally couple to a specific provider's behavior.
The system treats architecture as something that evolves over time. Instead of generating a static structure once and leaving it to drift, it tracks how the architecture changes as the system grows:
$ npx hexagen sync # Generate artifacts
$ npx hexagen sync --dry-run # Preview changes
$ npx hexagen sync --force # Overwrite non-generated files
$ npx hexagen sync --strict # Fail on linter warnings
$ npx hexagen arch list # List bounded contexts
$ npx hexagen arch validate # Validate manifest against rules
$ npx hexagen arch port # Scaffold a new port interactively
$ npx hexagen arch context # Add a new bounded context interactively
$ npx hexagen arch remove port # Remove a port from a context
$ npx hexagen arch remove port --force # Remove without confirmation
$ npx hexagen arch remove context # Remove a bounded context
$ npx hexagen arch remove context --force # Remove without confirmation
$ npx hexagen arch diff # Show manifest changes (current vs git HEAD)
$ npx hexagen arch diff --file <path> # Compare against specific file
$ npx hexagen arch edit # Edit manifest in editor (default: nano)
$ npx hexagen arch edit --editor vim # Use vim instead of nano
$ npx hexagen arch edit --validate-only # Validate without editing
The hexagen-lint command validates your project's architectural integrity against the manifest, closing the enforcement pipeline between code and governance. It discovers the project root using the following priority:
--root <path> CLI argument (explicit override)HEXAGEN_ROOT environment variablecwd() to find .architecture/manifest.yamlpackage.json with workspaces field
# Direct usage
$ hexagen-lint --root /path/to/project
# Via environment variable
$ HEXAGEN_ROOT=/path/to/project hexagen-lint
# CI/CD usage
$ yarn lint:arch
$ git clone git@github.com:martinkrakowski/hexagen-monaco.git
$ cd hexagen-monaco
$ yarn install
$ yarn build
$ npx hexagen --help
MIT. Maintained by Martin Krakowski.
